Save DWG as DXF
Prepare a lightweight DXF drawing from your CAD file and transfer it to the Android phone.
Android stakeout from DXF drawings
Tap a DXF point. Get bearing and distance.

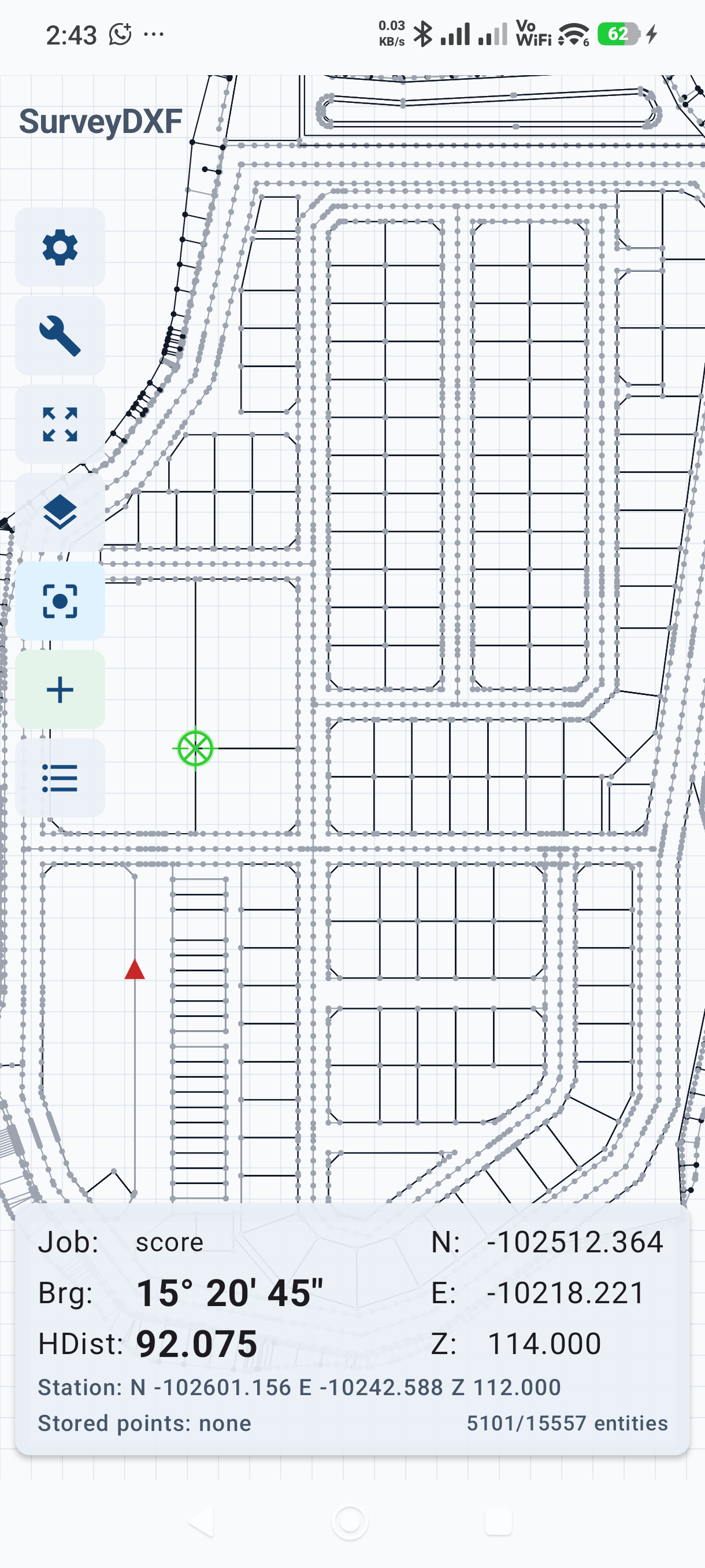

SurveyDXF replaces the paper-and-calculator workflow for common field stakeout. Open a DXF on your phone, set your total station coordinates, tap the point you want to stake, and read the bearing and distance instantly.
Always verify bearing, distance, coordinates, elevation, and drawing completeness before using results for final staking.
What it replaces
Less PC extraction, less paper, less calculator typing.
Set station
Enter the total station northing, easting, and elevation, pick from drawing, or use resection.
Tap target point
Use your finger to select the point or geometry you want to stake from the DXF drawing.
Stake with bearing and distance
Read bearing and horizontal distance directly on the phone, then rotate the total station to the point.
Field features
Built for surveyors using drawings on site.
DXF viewer for stakeout
Open DXF drawings, pan and zoom, control layers, and inspect CAD geometry from the phone.
Bearing and distance readout
Set station coordinates once, then tap drawing points to get HA and horizontal distance.
Station resection
Compute your station position from two known points and measured distances, with optional angle quality checks.
Snap and save points
Use drawing snap points, store stakeout points, and keep a point list for the job.
Reports and export
Export saved points to CSV or PDF for checking, sharing, and office records.
Level book
Record level runs and export level-book reports from the same field tool.
DXF compatibility warnings
The app warns when unsupported CAD objects are skipped so users can verify drawings before staking.
Edit station presets
Save, edit, and manage station presets for quick setup across projects.
Flexible plans
30-day free trial, then choose your plan.
Start with a full-featured 30-day trial. After the trial, unlock with a monthly or yearly subscription, or buy a Lifetime Pro license. All purchases are handled securely through Google Play.
Trial and paid access are verified by a server-side device entitlement. Purchases are completed securely through Google Play.
Monthly
Subscribe
Auto-renewing monthly subscription. Cancel anytime.
Yearly SubscribeAuto-renewing yearly subscription. Best value for regular users.
Lifetime Pro One-time purchasePay once, unlock forever. Includes all future updates.
View on Google PlayDownload SurveyDXF on Google Play
Install directly from Google Play. Start your 30-day free trial, then subscribe monthly or yearly, or unlock Lifetime Pro with a one-time purchase.
